Products Performance And Advantage:

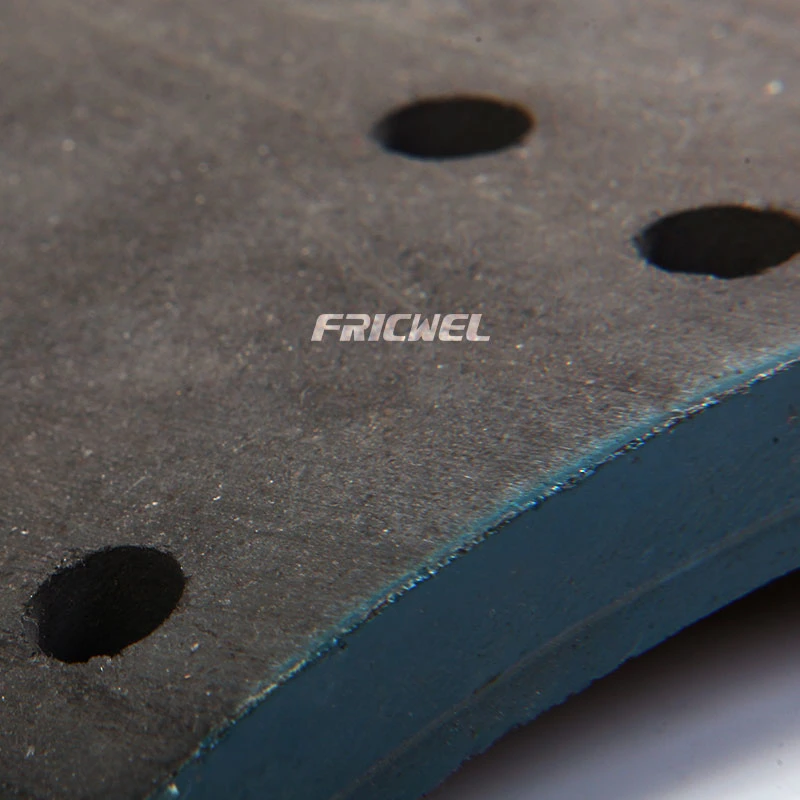

Brake lining regular materials including non-asbestos, semi-metal, NAO formula, new developed have green, red, Khaki and black particle material.
Product performance test results as follows:
1. 100ºC-250ºC Friction efficient: 0.405-0.445, 300ºC Friction efficient : 0.382.
2. 100ºC-250ºC Wearing rate: 0.105-0.242, 300ºC Wearing rate: 0.233.
3. Density 2.24 g/cm3, Hardness : 61-66HRM.
4. Impact strength: 3.12-3.8DJ/cm2,Thermal Expansivity 0.87% .
5. Shearing strength : 22.63MPa,Compression strength: 86.51N/mm2 .
Advantage:
1. Better wear resistance effect, 5% higher coefficient than regular brake lining.
2. Cost-effective and durable, 8% longer life than normal products.
3. Comfortable hardness, no hurting the brake drum.
4. 10-15% stronger than regular brake products.
5. Less noise and lower dust, making brake drum more cleaner and better finishing.
Dimensions And Specifications:
Production Scenario:
Company Profile:
Founded in 1992, our factory covers an area of more than 20,000 square meters, with an annual output of about 1,000 tons. Our main business is the production and sales of auto parts products, such as clutch facings, copper clutch buttons, friction disc and related accessories. We are also one of the earliest friction material manufacturers in China.
Our factory has passed ISO9001 quality system certification. And we have various advanced lathes and processing equipments, as well as various engineering testing instruments,reaching the leading level in the domestic industry. Our products are exported to all over the world and well received by customers.
Why Choose Us?
1. Focus on friction materials production for more than 20 years.
2. Strict quality control system and professional inspection, OEM service avaliable.
3. One year quality gurantee since the date of delivery.
4. The product has passed CE, ISO and TS16949 certificates.
5. Professional online service team, quick response for customer message and question.
6. Sales markets covers North America, South Aemica, Europe,Asia, Middle east and Africa.
Products Performance And Advantage:
Brake lining regular materials including non-asbestos, semi-metal, NAO formula, new developed have green, red, Khaki and black particle material.
Product performance test results as follows:
1. 100ºC-250ºC Friction efficient: 0.405-0.445, 300ºC Friction efficient : 0.382.
2. 100ºC-250ºC Wearing rate: 0.105-0.242, 300ºC Wearing rate: 0.233.
3. Density 2.24 g/cm3, Hardness : 61-66HRM.
4. Impact strength: 3.12-3.8DJ/cm2,Thermal Expansivity 0.87% .
5. Shearing strength : 22.63MPa,Compression strength: 86.51N/mm2 .
Advantage:
1. Better wear resistance effect, 5% higher coefficient than regular brake lining.
2. Cost-effective and durable, 8% longer life than normal products.
3. Comfortable hardness, no hurting the brake drum.
4. 10-15% stronger than regular brake products.
5. Less noise and lower dust, making brake drum more cleaner and better finishing.
Dimensions And Specifications:
| NO. | CODE NUMBER | B.F.M.C | ARC | WIDTH | Thickness | Thickness | Weight | INSIDE ARE | QTY/ Carton | G.W./ Carton | HOLE | Rivets |
| 1 | 15350 | BENZ 508 | 310 | 70 | 9 | 9 | 391 | 140 | 40 | 17 | 14 | 6*15 |
| 2 | 15581 | MB95/1 MB186 | 310 | 98 | 10 | 10 | 608 | 140 | 40 | 25 | 14 | 6*15 |
| 3 | 17276 | MB60/1 | 200 | 140 | 15 | 15 | 840 | 205 | 16 | 14 | 8 | 8*20 |
| 4 | 17298 | MB320 MB68/1 | 230 | 120 | 15 | 15 | 828 | 194 | 16 | 14 | 8 | 8*15 |
| 5 | 17683 | MP30/1 | 193 | 140 | 16.8 | 12.5 | 792 | 200 | 16 | 14 | 8 | 8*18 |
| 6 | 17714 | BO56/1 | 430 | 128 | 7 | 7 | 771 | 199 | 20 | 16 | 16 | L08 |
| 7 | 19075 | SV/8/1 | 212 | 178 | 19 | 19 | 1434 | 187 | 16 | 24 | 12 | 6*20 |
| 8 | 19094 | BC97/1 | 220 | 200 | 18 | 11 | 1276 | 203 | 16 | 21 | 10 | 8*18 |
| 9 | 19151 | DAF21/1 | 237 | 152 | 18.8 | 14.8 | 1210 | 203 | 16 | 20 | 10 | L09 |
| 10 | 19160 | MB51/1 | 200 | 170 | 15 | 15 | 1020 | 205 | 16 | 17 | 8 | 8*20 |
| 11 | 19256 | DAF/2800/3300R | 235 | 177 | 18 | 11 | 1206 | 203 | 16 | 20 | 14 | L09 |
| 12 | 19365 | RW/1/3 | 211 | 203 | 18 | 10.5 | 1221 | 203 | 15 | 19 | 12 | L10 |
| 13 | 19468 | VL72/1 | 161 | 178 | 19.1 | 15.6 | 994 | 197 | 16 | 17 | 9 | 6*20 |
| 14 | 19495 | MP32/2 | 192 | 180 | 17 | 11.8 | 995 | 200 | 16 | 17 | 8 | 8*18 |
| 15 | 19554 | RW29/2 | 217 | 200 | 22 | 14.5 | 1584 | 204 | 16 | 26 | 12 | 8*15 |
| 16 | 19563 | VL77/1 | 161 | 203 | 19.1 | 14.8 | 1108 | 192 | 16 | 19 | 9 | S34 |
| 17 | 19580 | MB74/1 | 193 | 160 | 18.5 | 15.7 | 1056 | 199 | 16 | 18 | 8 | 8*20 |
| 18 | 19657 | BT/59/6 | 400 | 175 | 13 | 13 | 1820 | 193 | 12 | 23 | 10 | 6*15 |
| 19 | 19847 | PB/18/1 | 210 | 220 | 18.6 | 16.8 | 1635 | 200 | 16 | 27 | 12 | 10*17 |
| 20 | 19934 | RN100/1 | 198 | 150 | 18.5 | 18.5 | 1099 | 187 | 16 | 19 | 8 | 8*18 |
| 21 | 19995 | NN61/1 | 211 | 203 | 15.5 | 15.5 | 1328 | 188 | 16 | 22 | 15 | 6*20 |
| 22 | 44066-90118 | NISSAN NN41/1 | 215 | 180 | 18 | 18 | 1393 | 187 | 16 | 23 | 9 | 10*30 |
| 23 | 47115-349 | ISUZU NQR 4.3 | 340 | 120 | 11 | 11 | 898 | 148 | 20 | 19 | 16 | 6*16 |
| 24 | 47441-4070 | HINO | 220 | 120 | 15 | 15 | 792 | 185 | 24 | 20 | 10 | 6*16 |
| 25 | MB162000 | CANTER | 343 | 75 | 10 | 10 | 515 | 152 | 40 | 22 | 12 | 6* |
